The Nifty SD (self-drive) 50 is a highly versatile articulating boom lift with 360 degree powered swing mechanism. Operable from the basket, the Nifty SD 50 accommodates up to two people and provides a fast, safe, and cost-effective solution for accessing overhead areas in a wide range of indoor and outdoor applications
This particular unit in this tutorial can be ran off 100% battery or 100% diesel
SPECIFICATIONS:
Weight: 6000lb
Working Height: 56ft
Platform Height: 49ft 6in
Working outreach: 28ft 6in
Machine Height: 7ft 3in
Machine Length: 18ft 4in
Machine Width: 5ft 3in
Working Width: 14ft 5in
Maximum Capacity: 500lb
Basket Size- Length x Width 25in x 44in
Gradeability: 30%
STEPS TO OPERATING THE NIFTY SD50
Ensure all e-stops have been pulled out/turned on
If using diesel power, hold glow plugs for appropriate amount of time, then start the machine

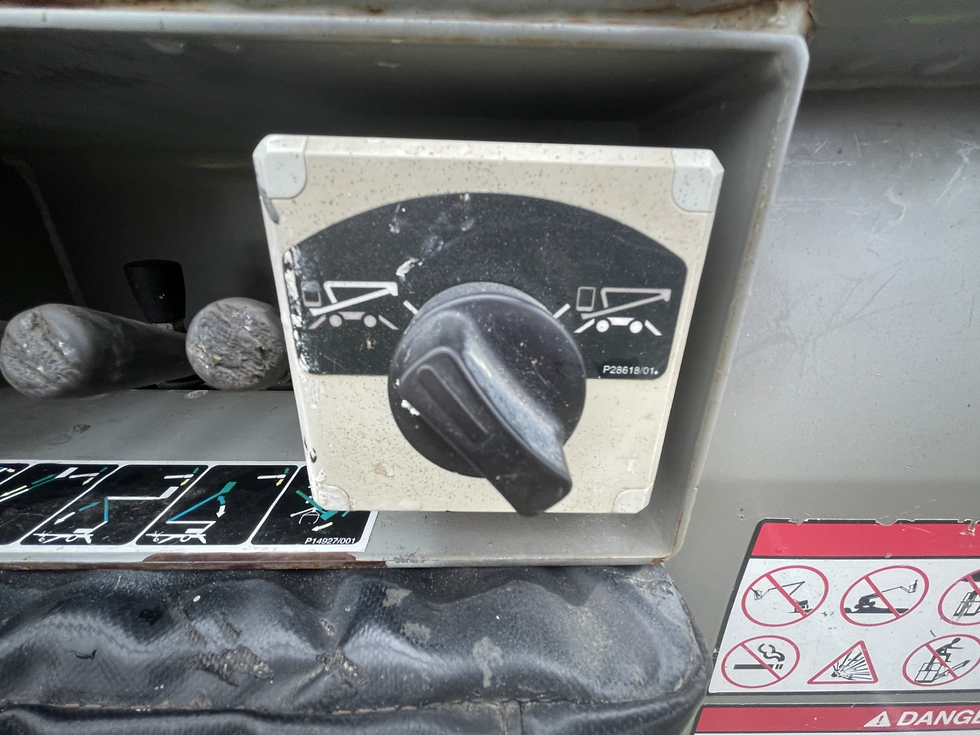

In the basket, ensure selector switch is on outrigger control
Level the machine by bringing all four outriggers to the ground, ensuring pressure has been applied to each outrigger and the machine is level.
Turn selector switch to boom control
Begin using desired boom functions by bringing up the upper boom, followed by the lower boom, then telescoping function
Vise versa, on the way down. Telescope back in, bring your lower boom down a bit, then bring your upper boom down until you can see the cradle that the lower boom is supposed to land in, bring lower boom down into cradle, finally bring your upper boom all the way down
Ensure at least one e-stop if not all, have been pushed in/turned off to preserve battery life
Note: all steps mentioned can be used 100% while operating using the battery
