The Nifty TM34 is a very convenient and versatile towable articulating boom lift designed for a range of tasks. Its retractable outriggers provide stabilization for the machine and allow it to fit through openings as narrow as 3 feet 7 inches, providing easy access to tight spaces. This particular unit is 100% battery powered. Light enough to be pulled with a four-wheeler or side-by-side.
SPECIFICATIONS:
Weight: 2630 lbs
Working Height: 40ft 6in
Platform Height: 34ft
Working outreach: 16ft 6in
Machine Height: 6ft 3in
Retracted Width: 3ft 7in
Machine Width 4ft 11in
Machine Length: 18ft 10in
Working Width: 8ft 10in
Safe Working Load: 500 lbs
STEPS FOR OPERATING:
Ensure lift is detached from vehicle
Ensure all E-stops have been pulled out/turned on

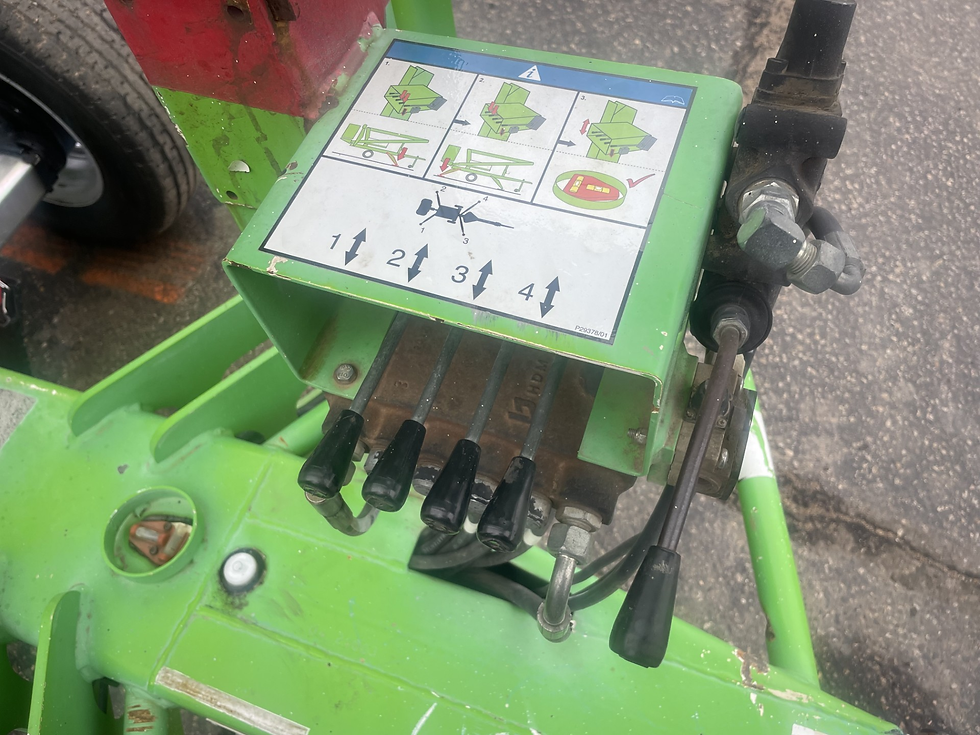

From the ground, manually bring all four outriggers down to the ground, ensuring pressure has been applied to all four outriggers and machine is level. This particular unit requires a pump to be engaged simultaneously while brining the outriggers down.
Switch controls over from ground control, to basket control
Begin operating booms by simultaneously holding the green engagement button and the desired boom function
I personally like bringing up the upper boom, followed by the lower boom, then using the telescoping function.
Vise versa, coming down, I'll telescope back in, bring the upper boom down a little bit, then bring the lower boom down until it's landed back in the designated cradle.
Note: Ensure one or both E-stops have been turned off when machine is not in use to preserve battery life!
